Electron-Beam Lithography
(Royce EBL Suite, Class 100 CGC Cleanroom)


Model: EBPG 5200, Raith GMBH

Available

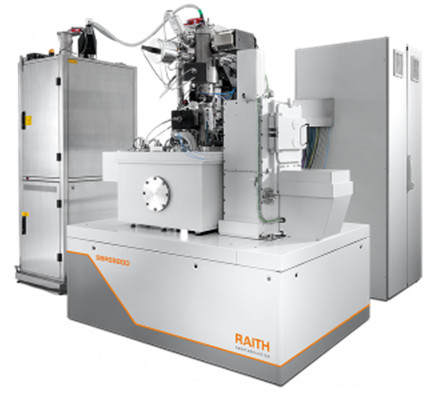

The EBPG5200 is a high performance nanolithography system with full 200 mm writing capability. This Electron Beam Lithography system presents a further evolutionary stage of the highly successful and field-proven EBPG series. It offers a wide range of leading edge solutions for both direct write nanolithography and R&D mask making in universities and commercial centers of excellence.

The system is available alongside the EBPG5150 which utilises the same universal plinth platform based on a 155 –mm by 155-mm stage platform.

  1. Highest resolution
  2. Unparalleled automatic calibration and job execution
  3. High current density Thermal Field Emission gun for operation at 20,
    50 and 100 kV
  4. 200 mm platform for up to 8 inch wafer and 7 inch masks
  5. Minimum feature size of less than 8 nm
  6. Continuously variable large field size operation to 1 mm at all kVs
  7. GUI for ease of use operation for diverse "multi user environment"
  8. Flexible configuration packages to ensure best fit with application requirements

Starlab - RF Antennae characterisation system
(Lab 31)


MVG, range 650 to 18 000 MHz

Available


StarLab is the ultimate tool for antenna pattern measurements in laboratories and production environments where space is limited, cost is critical, and the flexibility of a portable system is required.

  • Near-field / Spherical Near-field / Cylindrical
  • Cross polar discrimination, Sidelobe levels, 3D radiation pattern, Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency, TRP, TIS, EIRP and EIS
  • Frequency bands:  StarLab 18 GHz: 650 MHz to 18 GHz
  • Max. size of DUT: 45 cm for spherical set-up
  • 2.7 m x 45 cm for cylindrical set-up
  • Specific lengths available upon request
  • Max. weight of DUT: 10 kg with styrofoam mast
  • 15 kg with heavy DUT mast
  • Typical dynamic range: 650 MHz - 6 GHz: 70 dB, 6 GHz - 18 GHz: 60 dB
  • Oversampling,  Arch rotation
