Our Electronics lab is for electrical analysis of graphene products.


For access to the lab, or for any general training, please contact the lab leader Dr Wenshan Li, or one of the deputies: Patrik Gubeljak or Abdulaziz Almutairi.  For training on any of the equipment, please contact the Principal User or their deputy for the listed equipment.

While there is a range of devices in the Electrical Laboratory, several of them require booking before use. The booking system can be found here.


Physical Property Measurement System (PPMS) - DynoCool from Quantum Design

Principal User: Dr Alisson Cadore
Deputy: Dr Wenshan Li

A closed cycle refrigerator based testing system, which operates from 1.8 K to 400 K. The system allows applying +/- 14 Tesla at all temperatures of operation. Electrical Transport and DC Resistivity measurements can be performed. Cooling down to 1.8K from room temperature can be achieved in 1h.


Lakeshore probe station

Principal User: Dr Wenshan Li
Deputy: Abdulaziz Almutairi

A cryogen-free, closed-cycle refrigerator probe station enhanced with a vertical field superconducting magnet of ±2.5 T and temperature control of 10 K to 500 K. C-V, I-V, microwave, electro-optical probing and out-of-plane vertical magnetic field measurements are executable.

Cascade probe station

Principal User: Dr Wenshan Li
Deputy: Patrik Gubeljak

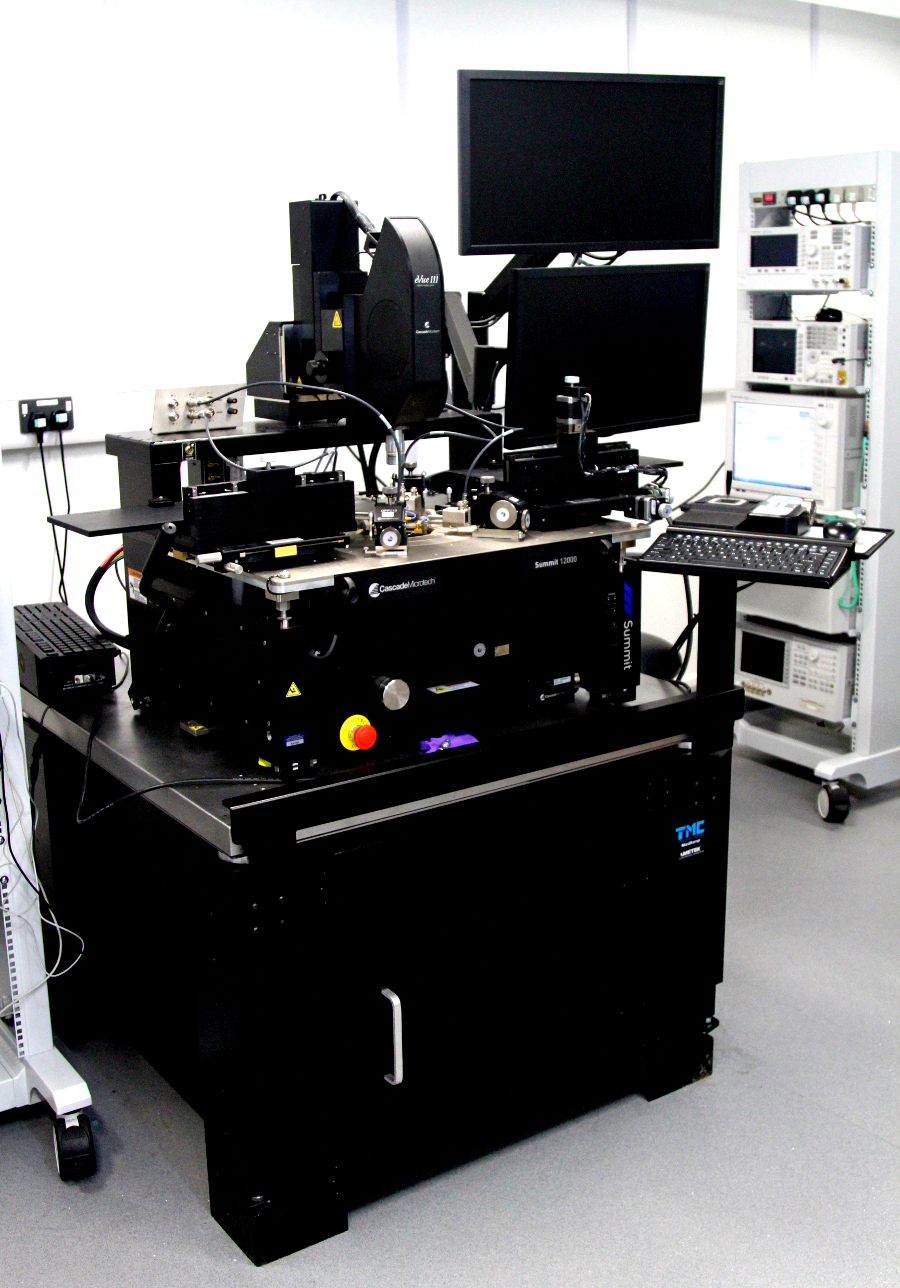

A Cascade Summit series semi-automated probe system with loading wafer size large up to 200 mm in diameter. High-precision device characterizations and on-wafer RF/Microwave measurements (up to 1.1THz) with wafer level reliability and yield enhancement are accessible on this probe station.

EverBeing Probe Station

Principal User: Dr Wenshan Li
Deputy: Patrik Gubeljak

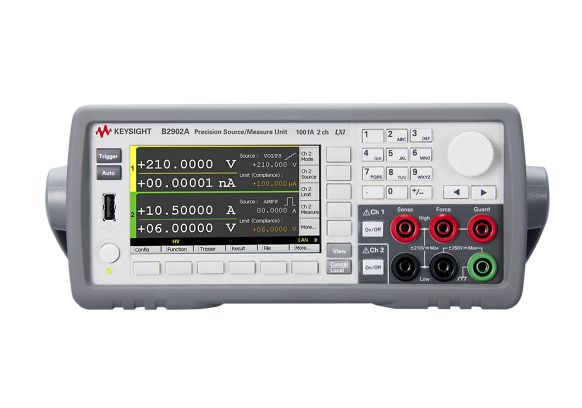

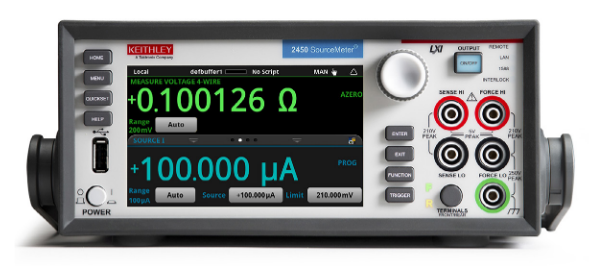

4-inch coaxial chuck stage based electrical probe station integrated with 4 high-precision SMUs, making this facility available to many electrical measurements, such as I-V, impedance, sheet resistance, contact resistance over various materials at room temperature.

Scanning Microwave Microscope (SMM)

Principal User: Dr Wenshan Li
Deputy: Patrik Gubeljak

A system which integrates electrical measurement capabilities of a vector network analyzer with spatial resolution of an atomic force microscope, is capable of mapping many properties of materials, such as impedance, capacitance, dielectric constant and dopant concentration etc.

Wire bonder

Principal User: Dr Wenshan Li
Deputy: Dr Kunjalata Majhi

Wedge, ball and ribbon bonding making use of Gold, Aluminium, Silver and Copper wires can be performed as using this facility either in manual or automatic mode.


When in the Electronics laboratory, please follow the local rules, downloadable here.
